World's top quality catalytic technology
  • PureSphere provides amorphous, nano-sized birnessite materials using unique synthesis methods.
  • VOCs are adsorbed and concentrated at low concentrations onto large specific surface areas.
  • Organic compounds with high boiling points such as limonene, levomenthol, and pinene are simultaneously removed and catalytically oxidized.

Purelyst® MD-101

Usage

Purelyst® MD-101 제품명, 제거대상, 특징, 적용분야에 관련된 표
Product name Purelyst® MD-101
Removal method
  • Removal of O3 at room temperature (O3 + catalyst -> 2O2)
  • Removal of odors and VOCs through catalytic oxidation reaction at temperatures above 170°C
  • Removal through H2O2 oxidation reaction (H2O2 + catalyst -> H2O + O2)
Characteristics
  • Acts as a powerful oxidizing agent for target substances
  • Analyzable catalytic reaction
  • Can be shaped into spherical, pellet, or tablet forms
  • Can be applied as coating on honeycomb supports
Applicable fields
  • Processes for the emission of odors and volatile organic compounds
  • Applications in semiconductor and display processes
  • Advanced wastewater treatment of water treatment plants, sewage treatment plants, and ballast water

Specifications for bulk and honeycomb-shaped products

Purelyst® MD-101 제품, 형태/크기 (직경/길이, mm), 충전밀도(g/cm3), 성분, 비표면적(m2/g), 적용가능 가스
Product Form/Size
(Diameter/Length, mm)		 Charge density(g/cm3) Composition BET specific surface area(m2/g) Applicable gases
Purelyst® MD-101 Pellet/1.5, 3, 5 mm 0.65±0.10 CuO > 18 mol%, MnO2 > 74 mol%, K, Al2O3 > 300 VOCs, O3, H2O2
Purelyst® MD-101S Sphere/2~5 mm 0.80±0.10
Purelyst® MD-101T Tablet/5 mm 0.90±0.20
Purelyst® MD-101 제품, 형태/크기 (직경/길이, mm), 셀밀도(Cells/in2), 오프닝(%), 적용가능 가스
Product Form/Size
(Diameter/Length, mm)		 Cell density(cells/in2) Opening(%) Applicable gases
Purelyst® MD-101H 150×50×50
150×150×100		 200
300
400		 60 VOCs, O3, H2O2
Purelyst® MD-101GF 300×200×10
200×100×10		 225 25

Product image

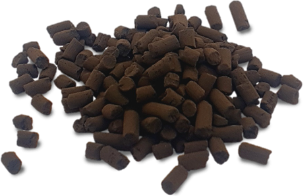

  • Purelyst® MD-101(Bulk pellet)
  • Purelyst® MD-101S(Bulk sphere)
  • Purelyst® MD-101T(Bulk tablet)
  • Purelyst® MD-101H(Coated on cordierite honeycomb)
  • Purelyst® MD-101GF(Coated on glass fiber honeycomb)
