Puresorb® TA-201 ~ 202

Usage

Puresorb® TA-201 ~ 202 제품명, 제거대상, 특징, 적용분야에 완련된 표
Product name Puresorb® TA-201, 202
Targeted pollutants
  • Substitution adsorption through oxidation reactions
  • Applicable to flammable or combustible gases such as SiH4, BF3, PH3, PF3
Characteristics
  • Stable and high adsorption performance
  • Extensive on-site experience and design capabilities
  • Can be applied in various forms, such as spherical, pellet, and 3H forms
Applicable fields
  • Semiconductor, display, solar cell, gas companies, etc.

Product specifications

Puresorb® AA-101 ~ 104 형태/크기(직경/길이, mm),충전밀도(g/cm3), 압축강도(N/시료), 적용가능 가스 관련된 표
Product TA-201 TA-202
Product description Moderate strength, relatively low charge density High strength, high charge density
Applicable fields SiH4, BF3, PH3, PF3 SiH4, BF3, PH3, PF3
Charge density(g/cm3) 0.6 ~ 0.8 0.8 ~ 1.0
Compressive strength(N) 15 or higher 25 or higher
Form and Size 3mm or 5mm Pellet 3mm or 5mm Pellet
Moisture(wt. %) Below 2 Below 2

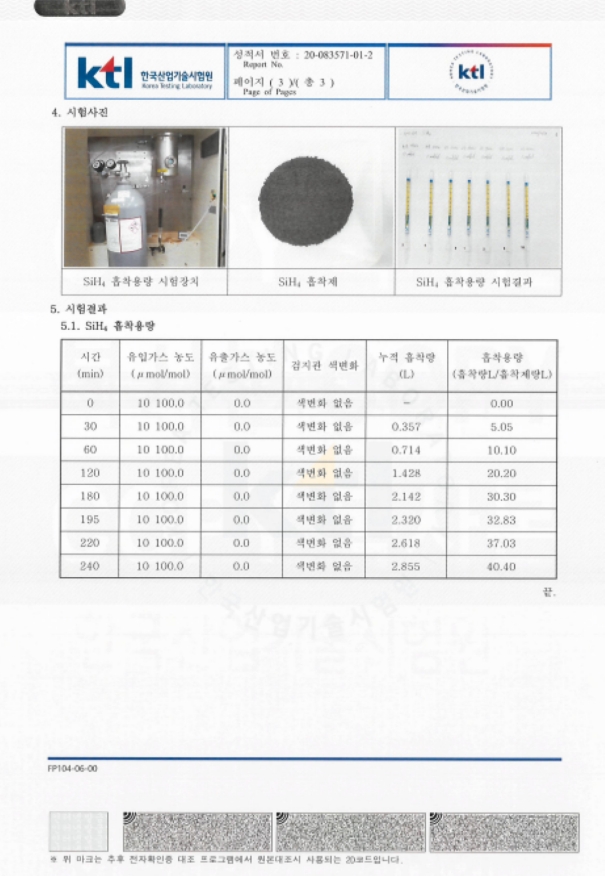

Test certificate

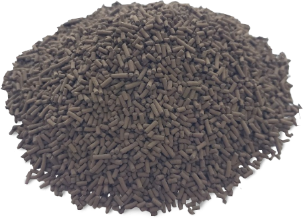

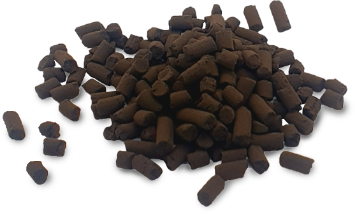

Product image
